Waterproof Hardened Fiber Optic Adapter SC APC PEI SM MM For FTTX

Name: Waterproof Hardened Fiber Optic Adapter SC APC PEI SM MM For FTTX
Brand: Unifiber or OEM
Price: 1 USD

China Waterproof Hardened Fiber Optic Adapter SC APC PEI SM MM For FTTX wholesale

Brand Name : Unifiber or OEM

Model Number : Hardened huawei mini SC/APC fiber optic adapter

Certification : ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 days

Packaging Details : Blister case

Product : Hardened huawei mini SC/APC fiber optic adapter

Waterproof Grade : IP68

Material : PEI

Connector type : Mini SC/APC

Application : FTTx

Contact Now

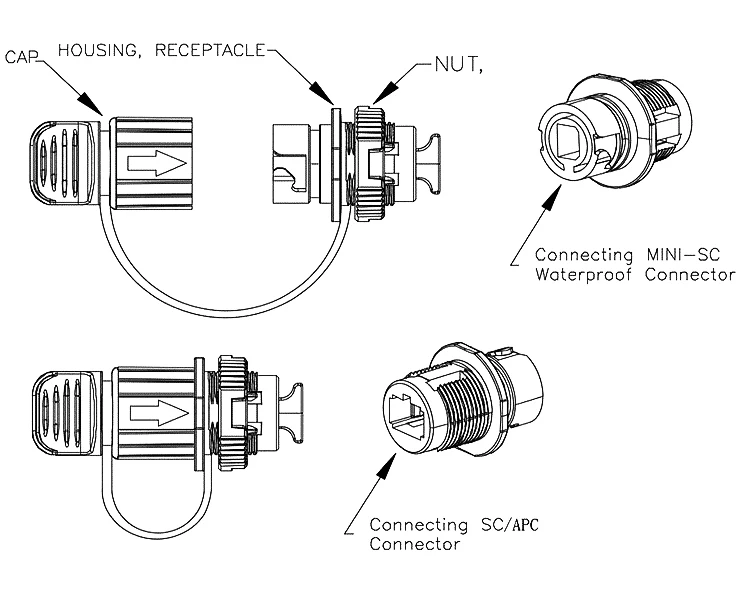

Outdoor waterproof Mini SC fiber optic adapter compatible with Huawei fast connect system, which offer a very easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. This hardened Mini SC adapter is compatible with HUAWEI MINI SC connectors, easy, environmental seal and mechanical protection for simplex SC style connections. Special fool-proofing design make sure connector has blind-mating function; provides quick installation solutions and has good performance on mating with Huawei Mini SC receptacle. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.

Model	SM MM
SC Connector Fiber Count	1 core
SC SX Adapter Mini SC compatible	PC, APC
Insertion Loss Standard type	less than 0.25dB
Insertion loss Elite type	Less than 0.2dB
Return Loss	PC >50dB, APC>60dB
Durability (500 matings)	less than 0.2dB
Pulling Force (N)	450N

Waterproof Hardened Fiber Optic Adapter SC APC PEI SM MM For FTTX
