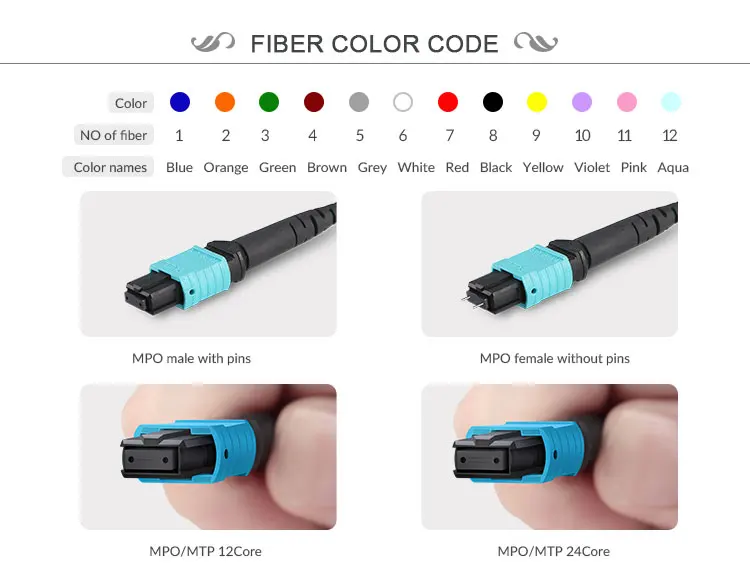

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
FEATURES
Supports up to 12F, 24F, 48F, 72F, 96F, 144F
Supports 40G and 100G network applications
Rapid configuration and networking, reduce installation time
Jacket material: LSZH, OFNR, OFNP available
customized products are available
APPLICATION High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
| | | |
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 |
| 48F/APC | ≤0.75 | ≥60 | | |
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 48F/PC | ≤0.50 | ≥20 | | |
| LC/SC/FC/ST | SM | | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 |
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
| |
| Item | Criteria | Conformance |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) |
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
| |
| Item | Criteria | Conformance |
| Operation Temperature | -40~60°C | IEC 61753-1 |
| Storage Temperature | -45~85°C |
