1470nm~1610nm 8 Channel CWDM Mux Demux LC UPC Passive Optical Module

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : 8 Channel CWDM Mux Demux

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Carton Box

Operating Wavelength : 1470nm~1610nm 8 Channel CWDM Mux Demux Passive Optical Module

No of Channel : 8 Channel(1470nm~1610nm)

Package : ABS Module

Connector : LC/UPC

Fiber type : 900um loose tube

Configuration : Mux or Demux

Channel Spacing : 20nm

Contact Now

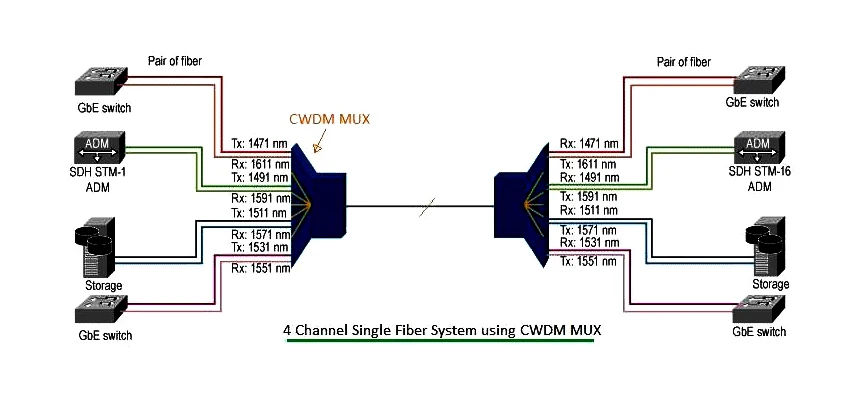

1270nm~1610nm 4/6/8/16 Channel CWDM Mux Demux Passive Optical Module is an excellent choice for increasing bandwidth capacity while keeping costs down. based on standard Thin Film Filter (TFF) technology with a proprietary packaging, Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.

APPLICATION
CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications

FEATURES
High Stability & Reliability

Low Insertion Loss
Excellent Channel Isolation
Low Cost

1470nm~1610nm 8 Channel CWDM Mux Demux LC UPC Passive Optical Module

Parameters:

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.2 ≤1.5 ≤3.0
Channel Uniformity (dB) ≤0.5 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Opterating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15

Above specification are for device without connector.

Ordering Information

Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

M=Mux D=Demux

O=OADM

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable		 1=1m
2=2m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC

……
1470nm~1610nm 8 Channel CWDM Mux Demux LC UPC Passive Optical Module
